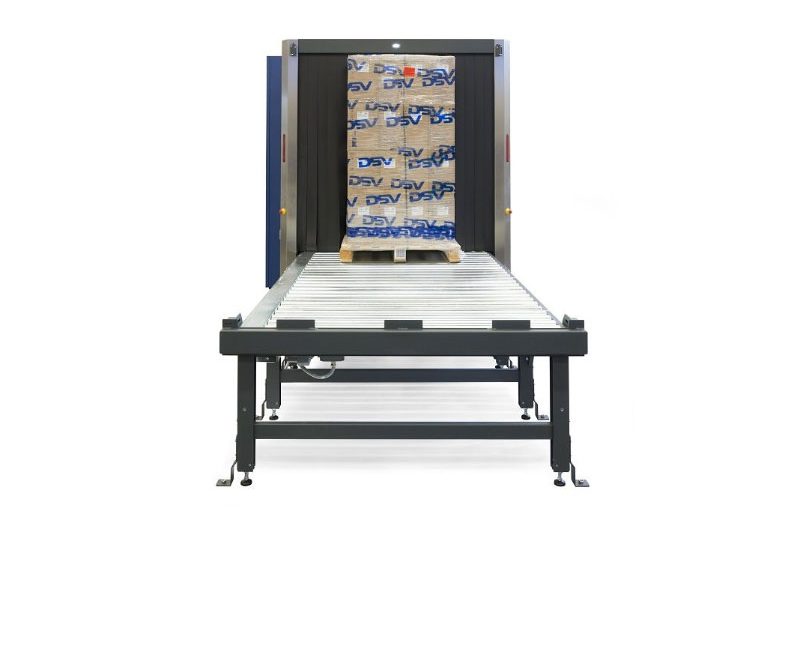

An X-ray scanner designed for the inspection of large-scale consolidated and palletised goods.
Tunnel dimensions of 180 x 180cm means the HI-SCAN 180180-2is pro is capable of screening LD3 containers.
Based on a dual-view concept, the system provides two sharp independent views of the screened goods and, as a result, it delivers more accurate and reliable image evaluation.
Two powerful 300 kV X-ray generators are capable of penetrating even large and dense objects, reducing reinspection times (as consolidated cargo does not usually need to be broken down into smaller items), ensuring high throughput and a fast, efficient inspection process.
The small-pitch roller conveyors ensure a smooth passage for the scanned goods and supports a total load of up to 5,000kg/m (evenly distributed).
|Features||HI-SCAN 180180-2is pro|
|Maximum Object Size||1790 (W) x 1700 (H) [mm]
70.5 (W) x 66.9 (H) [in] 70.5” (W) x 66.9" (H)
7200 (L) x 2650 (W) x 2900 (H) [mm] 280 (L) x 104 (W) x 114 (H) [in]
280" (L) x 104" (W) x 114" (H)
|Weight||Approx. 9000 kg
Approx. 19,842lbs approx. 19842 lbs
• Dual view shortens inspection times
• Beam geometry facilitates the detection of potential threats
• Rugged roller conveyors accepts loads of up to 5 tonnes when evenly distributed
• High-penetration capabilities to avoid disassembly into individual packages
