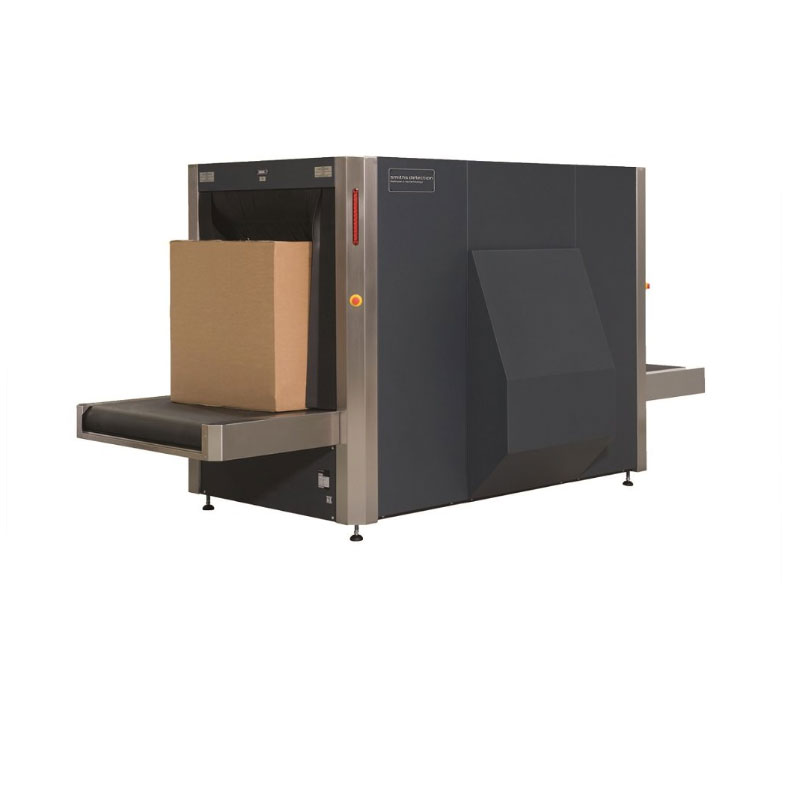

HI-SCAN 100100V-2is
May 22, 20180
The HI-SCAN 100100V-2is is equipped with two 160kV generators in 90° opposition, providing a horizontal and vertical view of the screened object (dual-view). This screening method facilitates reliable inspections of tightly packed objects in one process, shortening inspection times.
Designed to meet the requirements of airports, customs facilities, logistics companies and parcel services, its compact system design provides the highest performance with the smallest footprint.
| Features | HI-SCAN 100100V-2is |
|---|---|
| Maximum Object Size | 1000 (W) x 1000 (H) [mm] 39.4 (L) x 39.4 (W) [in] |
| Dimensions | 3585 (L) x 1530 (W) x 1750 (H) [mm] 141.1 (L) x 60.2 (W) x 68.9 (H) [in] |
| Weight | Approx. 1,050kg / 2,315lbs |
Feature Highlights
– Dual-view shortens inspection times
– Smallest footprint in its range
– Conveyor height of 62cm
– Conveyor load of 220kg
– Typical steel penetration of 37mm in both views
– ECAC STP compliant
